帮助手册

如何监控 Google Cloud 服务配额

简介

服务配额可防止您在硬件、软件和网络资源上过度支出。Site24x7 的服务配额监控功能可在您的任何云资源已超出或即将超出分配的云配额时及时通知您。

前提条件：

  • 您需要拥有所需的 GCP 监控权限。
  • 为您的 Cloud Quota API 和 Cloud Monitoring API 启用监控。
注意

Site24x7 使用 Cloud Quota API 和 Cloud Monitoring API 读取配额限制并与实际用量进行比较。请确保已向 Site24x7 使用的服务账户授予这两个 API 的相应权限。

支持的监控级别

Site24x7 支持在两个级别进行服务配额监控：

组织级别

在 Google Cloud 组织级别启用服务配额监控，无需为每个项目单独配置即可监控所有关联 Google Cloud 项目的服务配额。仅当项目的服务账户已授予所需 API 权限时，才会对该项目的服务配额进行监控。

项目级别

当您需要更精细的控制，或组织级别监控不适合您的需求时，可针对单个 GCP 项目设置服务配额监控。

配额监控视图

启用服务配额监控后，您可以访问以下三个主要仪表板：

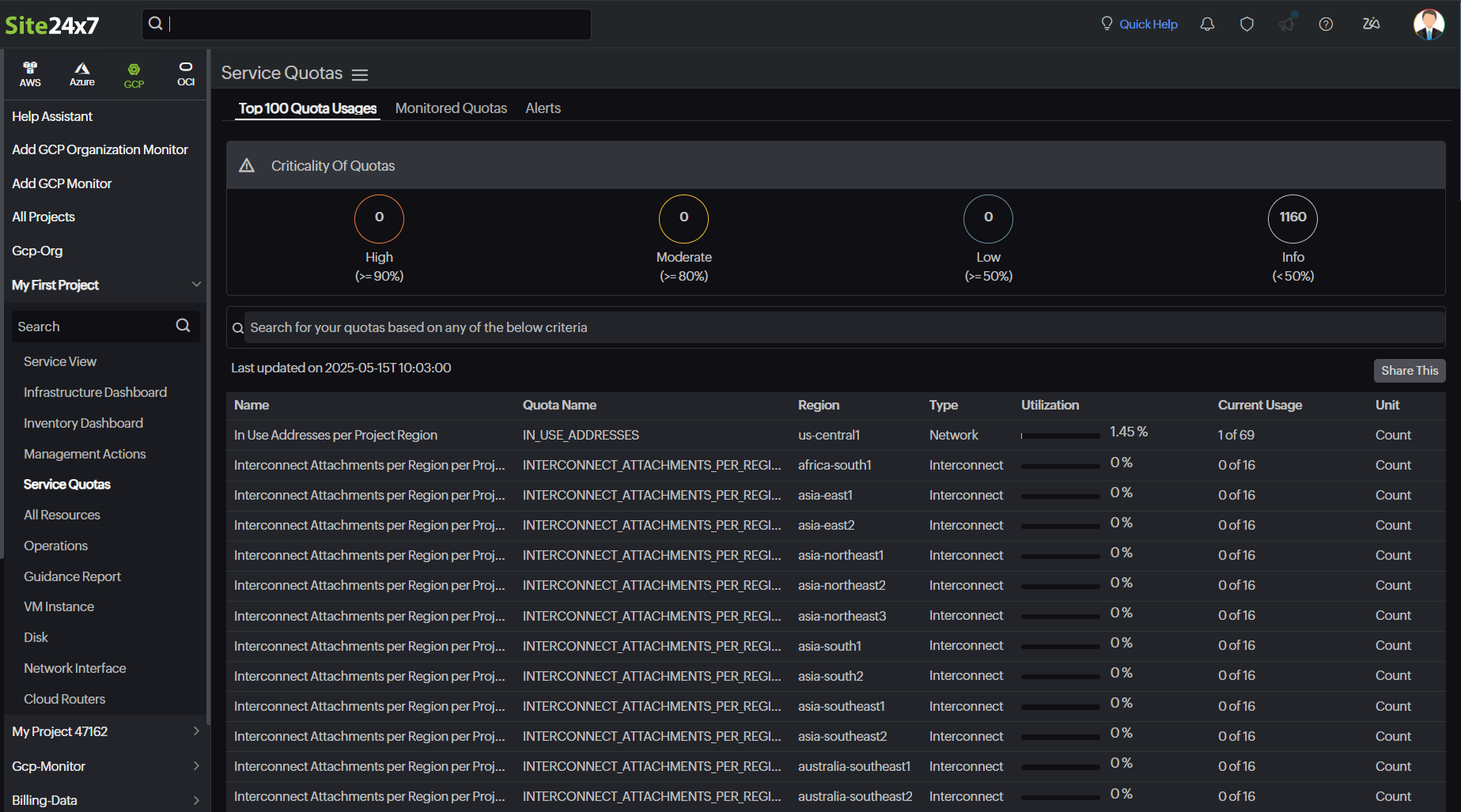

前 100 名配额用量

此仪表板显示各支持类别中前 100 个服务配额的使用情况。

此仪表板包含两个部分：

配额严重性

在此部分，您可以查看按以下四个严重性类别划分的服务配额数量：

  • 高：90% 及以上
  • 中：80% 至 89%
  • 低：50% 至 79%
  • 信息：低于 50%

详细报表

在此部分，将列出每个服务配额的以下信息：

  • 名称
  • 配额名称
  • 区域
  • 类型
  • 使用率（%）
  • 当前用量
  • 单位

在搜索栏下方的最近更新时间字段中查看最新数据采集的时间。此仪表板中的数据每三小时采集一次。

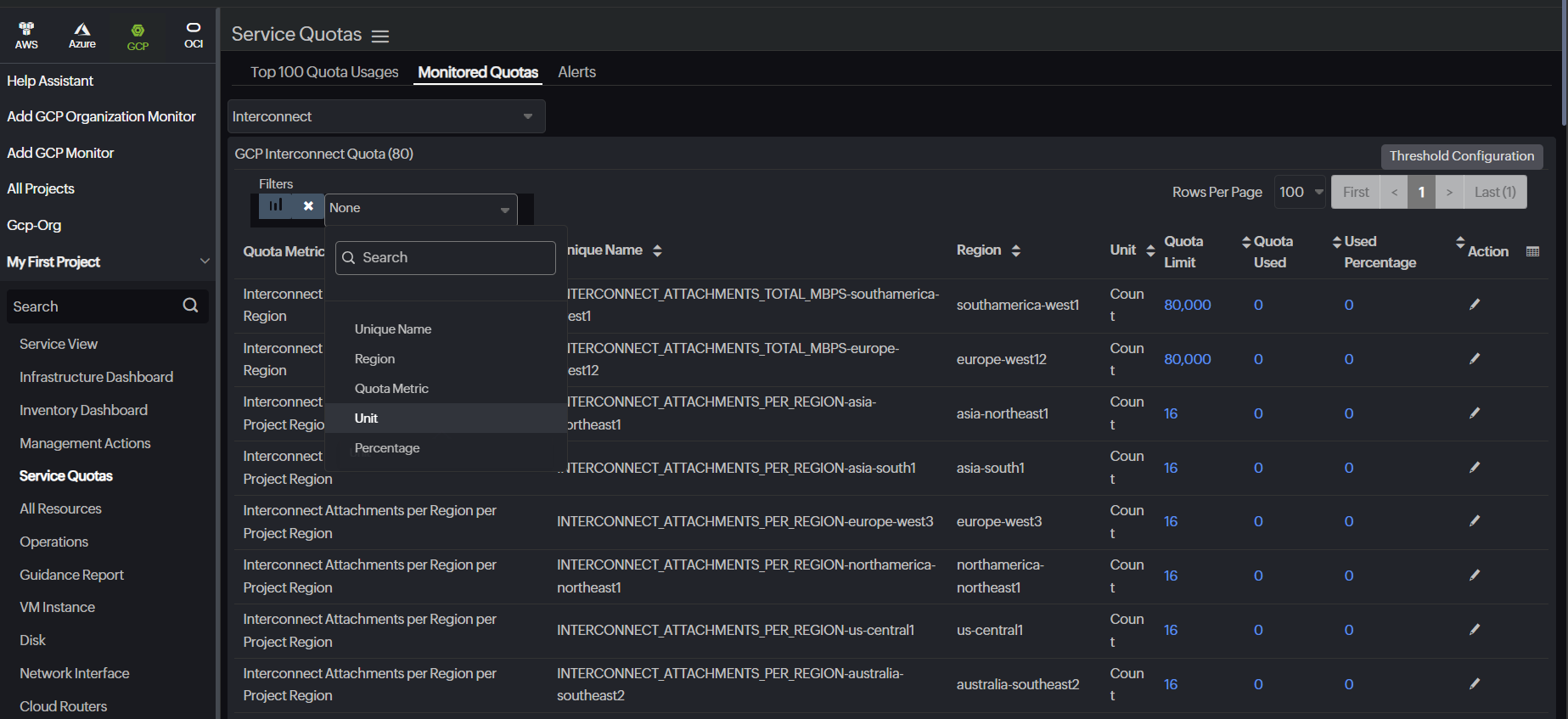

已监控配额

要查看所有已监控 GCP 资源配额的服务配额使用情况，请导航到已监控配额标签页，并在左上方的下拉菜单中选择所需类别。

单击表格右上角的阈值配置，可批量为配额指标应用阈值限制。

此页面将列出您的 GCP 资源服务配额使用情况的以下重要信息：

  • 配额指标
  • 唯一名称
  • 区域
  • 单位
  • 配额限制（单击指标可查看详细仪表板）
  • 已用配额（单击指标可查看详细仪表板）
  • 使用百分比（单击指标可查看详细仪表板）
  • 操作（单击铅笔图标可编辑相应配额指标的阈值）

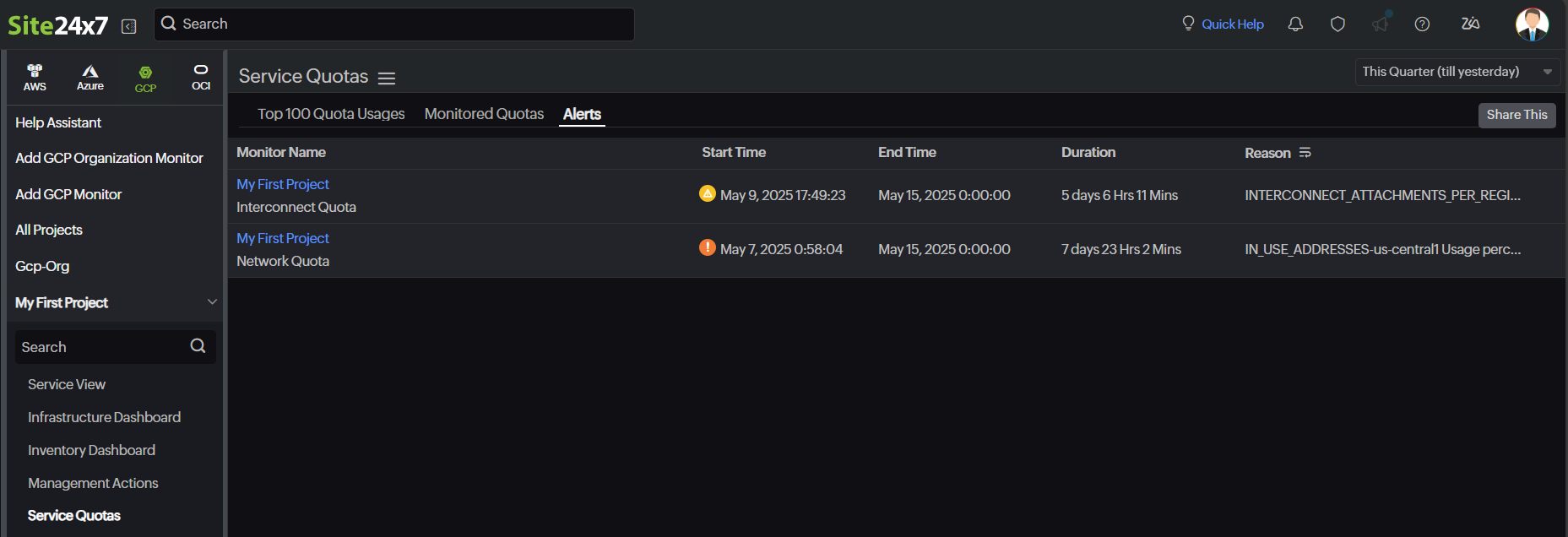

告警

在此标签页中，您可以查看所有服务配额阈值违规的列表。单击监视器名称可查看所采集数据的详细视图。

您可以查看监视器名称及中断详情，包括开始时间、结束时间、持续时间和原因。

在不同级别查看配额

如何为组织监视器启用服务配额监控

要为 GCP 组织监视器启用服务配额监控：

  • 创建或编辑 GCP 组织监视器时（编辑监视器时，使用监视器旁边的汉堡 汉堡图标 图标 > 编辑）：
    1. 导航至高级配置部分。
    2. 在常规设置下，将启用服务配额切换为是。
    3. 在服务配额配置文件下拉菜单中，选择现有的服务配额指标配置文件，或使用字段旁的添加图标 + 新建一个。
  • 对于现有的 GCP 组织监视器：
    1. 导航至 Site24x7 > 云 > GCP，在左侧导航窗格中选择项目监视器 > 服务配额。
    2. 单击启用服务配额监控。
    3. 在弹出窗口中，为您的服务配额指标配置文件填写合适的名称。
    4. 选择所需的指标。
    5. 确认更改后单击保存。

跨项目查看服务配额指标

在组织级别启用后，您可以：

  • 通过下拉菜单选择所有项目或特定项目，查看其前 100 名配额用量。
    • 选择所有项目时，将额外显示项目 ID 列，因为项目名称不是唯一的（多个项目可以有相同的项目名称）。
  • 通过下拉菜单选择所有项目或特定项目，查看所有已监控配额
  • 查看因组织账户中所有项目的服务配额阈值违规而生成的告警
注意

在组织级别启用服务配额后，将对所有关联项目启用配额监控，无需逐一配置每个项目。

如何为项目设置服务配额监控

通过以下两种方法之一为项目设置 GCP 服务配额监视器。

  • 创建或编辑 GCP 项目监视器时（编辑监视器时，使用监视器旁边的汉堡 汉堡图标 图标 > 编辑）：
    1. 导航至高级配置部分。
    2. 在常规设置下，将启用服务配额切换为是。
    3. 在服务配额配置文件下拉菜单中，选择现有的服务配额指标配置文件，或使用字段旁的添加图标 + 新建一个。

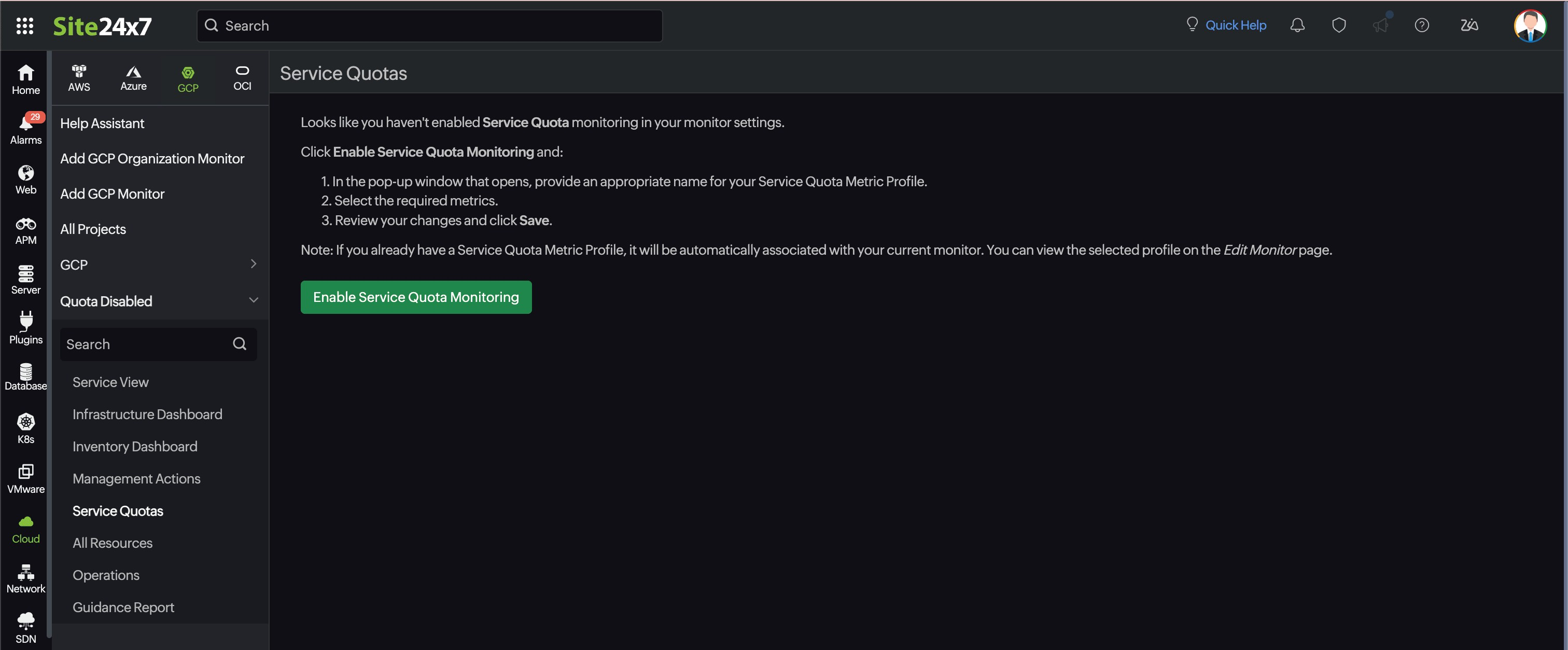

  • 对于现有的 GCP 项目监视器：
    1. 导航至 Site24x7 > 云 > GCP，在左侧导航窗格中选择项目监视器 > 服务配额。
    2. 单击启用服务配额监控。
    3. 在弹出窗口中，为您的服务配额指标配置文件填写合适的名称。
    4. 选择所需的指标。
    5. 确认更改后单击保存。

在哪里查看服务配额监视器？

要查看服务配额页面，请导航至 Site24x7 > 云 > GCP，在左侧导航窗格中选择项目监视器 > 服务配额。

告警与通知阈值

如何获取配额使用率违规的告警

您可以通过配置阈值，使 GCP 服务配额监视器在配额使用率超出预期限制时触发告警。可通过以下两种方法进行配置：

  • 单个配额阈值违规时告警：在已监控配额标签页中，导航至相应服务配额，在操作列中单击铅笔图标 以配置您希望接收告警的阈值。

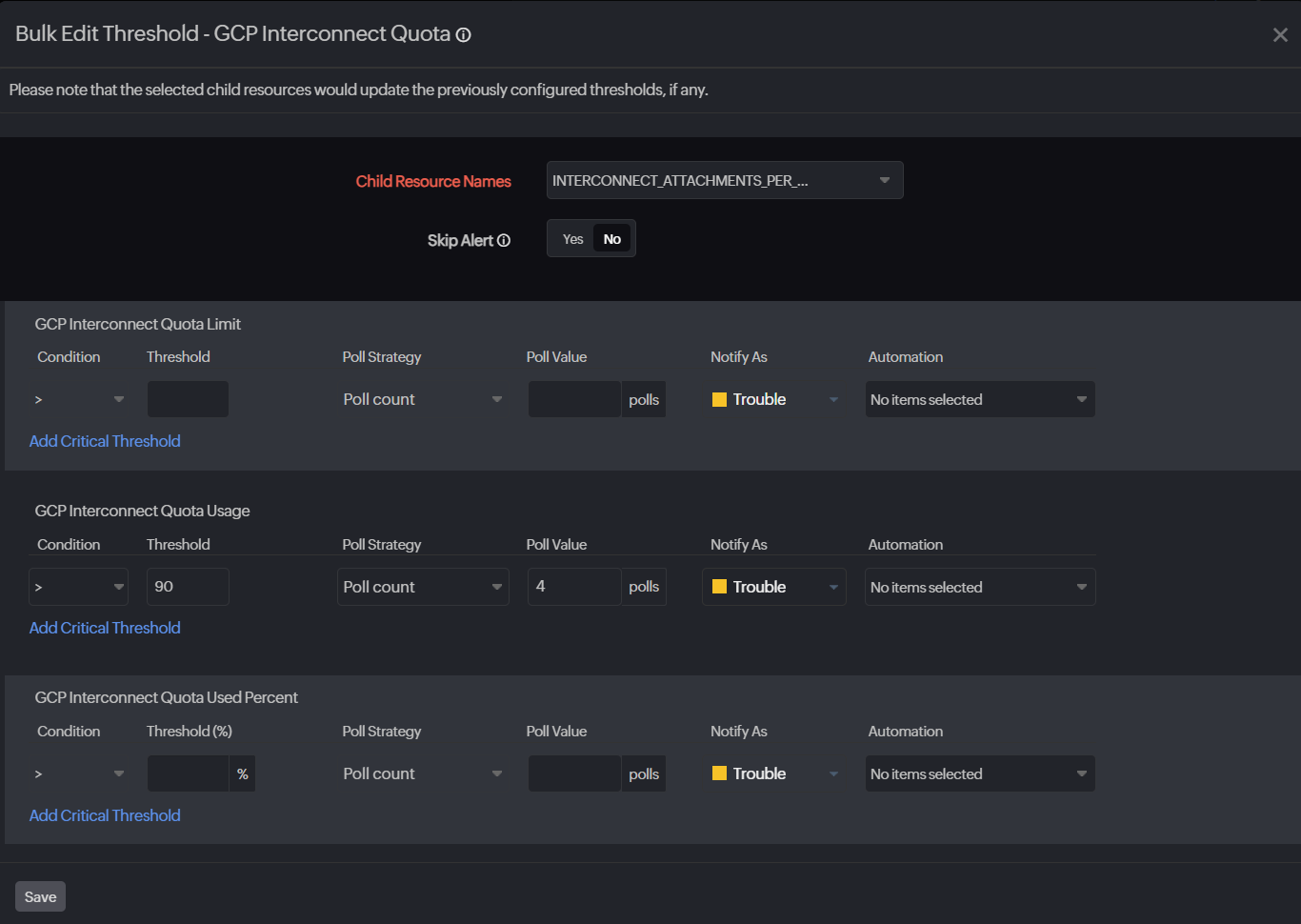

  • 同时为多个服务配额使用率配置告警：导航至已监控配额标签页，选择配额类型，在配额列表页面中单击阈值配置。在子资源名称下拉菜单中选择要设置告警的服务配额，然后配置阈值。

您可以配置 GCP 服务配额监视器，在以下三个属性中的任一项超出预期限制时发出告警：

  • 限制
  • 用量
  • 使用百分比

通过输入以下数据来配置子阈值设置：

  • 条件：设置触发告警的运算符（例如，当前使用率大于或小于指定值时）。
  • 阈值：输入服务配额使用率的预期值，超出该值时将触发警告或严重告警。
  • 轮询策略和轮询值：选择告警的触发时机。例如，选择轮询次数策略并在轮询值字段中输入"5"，则当服务配额使用率连续五次数据采集（轮询）均超出预期限制时触发告警。
  • 通知为：选择告警类型：警告或严重。
注意

每个配额指标都有默认阈值限制，分别在 80% 和 90% 时触发警告和严重告警。要更改任何默认阈值配置文件的阈值，请导航至管理 > 配置文件 > 阈值与可用性，并更新相应服务配额的阈值配置文件。

基础架构事件

任何服务配额阈值违规或配额使用率达到 100% 的情况都将被记录为基础架构事件，可通过导航至左侧导航窗格中的 Applogs（仅在已启用 Applogs 功能的情况下），并筛选所需日志模式来查看。

示例查询：

  • logtype="Infrastructure Events" and ProductModule CONTAINS "GCP-QUOTA"
  • logtype="Infrastructure Events" and ProductModule CONTAINS "GCP-QUOTA" groupby source

导出与报表

如何导出服务配额使用情况

在"前 100 名配额用量"标签页中，单击分享按钮，可将服务配额使用率数据导出为以下格式：

  • CSV（导出前 2000 条记录）
  • PDF（仅导出前 100 条使用率数据）

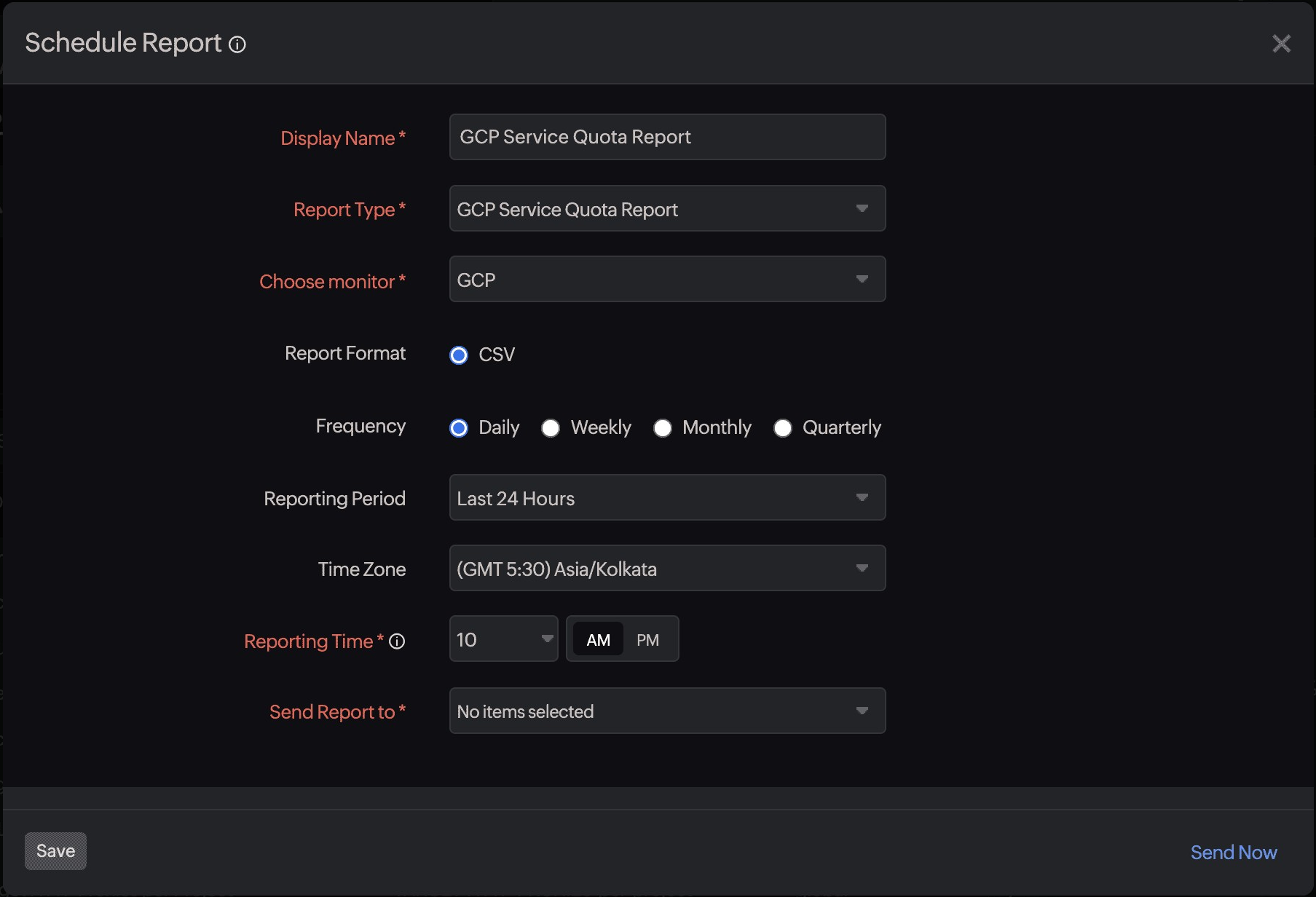

  • 定时报表（导出前 2000 条记录）
  • 邮件（导出前 2000 条记录）
注意

CSV 报表显示前 2000 条服务配额使用情况。

您也可以通过单击"告警"标签页中的分享按钮，将告警数据导出为 CSV、PDF 和邮件格式。

最佳实践

如何从监控中排除特定配额指标

  • 单击服务配额监视器旁边的汉堡图标，然后单击编辑。
  • 在高级配置部分，单击服务配额指标配置文件字段中所选指标配置文件旁边的铅笔图标。
  • 取消选择您要从监控中排除的指标。
  • 单击保存。

取消选中的指标将在三小时内从监控中排除。

许可证消耗

每监控 100 个服务配额指标消耗一个基础监视器许可证。导航至管理 > 订阅 > 许可证使用摘要 > 子实体标签页，可查看您的 GCP 服务配额监视器的许可证消耗情况。

常见问题

数据刷新时间（即数据采集频率）是多长时间？

服务配额指标每三小时更新一次。

新增配额类型后，何时可以在 Site24x7 仪表板中看到它？

新配额类型在启用时以及之后每 24 小时会被自动发现并添加到监控中。

支持哪些配额服务类型？

目前支持以下 14 种服务类型：

  • 计算配额
  • 存储配额
  • Pub/Sub 配额
  • 身份配额
  • Cloud Function 配额
  • 监控配额
  • 互联配额
  • Cloud Run 配额
  • Firestore 配额
  • BigQuery 配额
  • 网络配额
  • VPC Access 配额
  • 路由器配额
  • 负载均衡器配额

为什么我看不到基础架构事件？

请检查您的 Site24x7 账户中是否已启用 Applogs。如果未启用，请先启用 Applogs。

如何计算我的总许可证消耗量？

每个受监控的服务配额指标消耗 0.01 个基础监视器许可证。如果您监控了 350 个服务配额指标，将消耗 3.5 个基础监视器许可证，该数值将计入您账户的总许可证消耗量并四舍五入。

支持监控的配额列表

支持的指标

以下是各资源类型支持监控的指标：

PubSub

  • Acknowledger in Minute per Project per Region
  • Administrator in Minute per Project
  • Exactly Once Ack Count
  • Exactly Once Delivered Message Count
  • Publisher in Minute per Project per Region
  • Push Subscriber in Minute per Project per Region
  • Streaming Pull Connections in Minute per Project per Region
  • Streaming Pull Subscriber in Minute per Project per Region
  • Subscriber in Minute per Project per Region

Cloud Storage

  • Anywhere Cache Max Cache Size
  • Dual Region Google Egress Bandwidth
  • Dual Region Internet Egress Bandwidth
  • Google Egress Bandwidth
  • Internet Egress Bandwidth
  • Multi Region Google Egress Bandwidth
  • Multi Region Internet Egress Bandwidth
  • Committed Local SSD Total GB per Project Region
  • Disks Total GB per Project Region
  • HDB Total GB per Project Region
  • HDML Total GB per Project Region
  • Local SSD Total GB per VM Family per Project Region
  • Local SSD Total GB per Project Region
  • Pre-emptible Local SSD GB per Project Region
  • SSD Total GB per Project Region
  • HDB Storage Pool Total Advanced Capacity per Project Region
  • HDB Storage Pool Total Advanced IOPS per Project Region
  • HDB Storage Pool Total Advanced Throughput per Project Region
  • HDT Storage Pool Total Advanced Capacity per Project Region
  • HDT Storage Pool Total Advanced Throughput per Project Region

Identity

  • Read Requests in Minute per Project
  • Service Accounts per Project
  • Sign Requests in Minute per Project
  • Work Load Identity Pools Creates in Minute per Client
  • Work Load Identity Pools Creates in Minute per Project
  • Work Load Identity Pools Reads in Minute per Client
  • Work Load Identity Pools Reads in Minute per Project
  • Work Load Identity Pools Writes in Minute per Client
  • Work Load Identity Pools Writes in Minute per Project
  • Write Requests in Minute per Project

Cloud Functions

  • Functions Build Time in Seconds per Day per Project
  • Total CPU Allocation in milli VCP per Project per Region
  • Total Memory Allocation in Bytes per Project per Region
  • Read Requests in Minute per Project
  • Test Function in Minute per Project
  • V2 Read Requests in Minute per Project per Region
  • V2 Write Requests in Minute per Project per Region
  • Write Requests in Minute per Project

Monitoring

  • Dashboards Read Requests per Minute per Project
  • Dashboards Write Requests per Minute per Project
  • Dashboards per Project
  • Total Requests per Minute per User
  • Time Series Ingestion Requests per Minute per Project
  • Metrics Scopes Read Requests per Minute per Project
  • Metrics Scopes Write Requests per Minute per Project
  • Monitored Projects per Metrics Scope
  • Alerting Policies per Project
  • Time Series Queries per Minute per Project
  • Service Time Series Ingestion Requests per Minute per Project
  • Services per Project
  • SLOs per Project
  • Uptime Checks per Project
  • Widgets per Dashboards

Interconnect

  • Interconnect Attachments All Regions per Interconnect Resource
  • Interconnect Attachments per Region per Project Region
  • Interconnect Attachments Total MB/s per Project Region
  • Interconnects per Project

Cloud Run

  • Active Revisions per Project
  • Total CPU Allocation (in milli vCPU) per Project per Region
  • Job Run Requests per Minute per Project Region
  • Jobs per Project
  • Instance Limit per Project Region
  • Instance Limit With Direct VPC Egress per Project Region
  • Total Memory Allocation (in Bytes) per Project per Region
  • Total Nvidia L4 Gpu Allocation per Project per Region
  • Read Requests per Minute per Project Region
  • Running Executions per Project
  • Services per Project
  • Tags per project
  • Write Requests per Minute per Project Region

Firestore

  • Composite Indexes per Database
  • Database Operations per Minute
  • Databases per Project
  • Free Daily Delete Operations per Project ('(default)' Database)
  • Export Requests per Minute
  • Import Requests per Minute
  • Locations Requests per Minute
  • Query Insights Requests per Minute
  • Free Daily Read Operations per Project ('(default)' Database)
  • Free Daily Small Operations per Project ('(default)' Database)
  • Free Daily Write Operations per Project ('(default)' Database)

Cloud Compute

  • A2 CPUs per Project Region
  • Active Resize Requests per Project Region
  • Affinity Groups per Project Region
  • Autoscalers per Project Region
  • Regional Autoscalers per Project Region
  • C2 CPUs per Project Region
  • C2d CPUs per Project Region
  • C3 CPUs per Project Region
  • Committed A2 CPUs per Project Region
  • Committed C2 CPUs per Project Region
  • Committed C2D CPUs per Project Region
  • Committed C3 CPUs per Project Region
  • Committed CPUs per Project Region
  • Committed M3 CPUs per Project Region
  • Committed Memory Optimized CPUs per Project Region
  • Committed N2 CPUs per Project Region
  • Committed N2D CPUs per Project Region
  • Committed N4 CPUs per Project Region
  • Committed T2D CPUs per Project Region
  • Committed Z3 CPUs per Project Region
  • CPUs All Regions per Project
  • CPUs per VM Family per Project Region
  • CPUs per Project Region
  • M1 CPUs per Project Region
  • M2 CPUs per Project Region
  • M3 CPUs per Project Region
  • N2 CPUs per Project Region
  • N2d CPUs per Project Region
  • Pre-emptible CPUs per Project Region
  • T2a CPUs per Project Region
  • T2d CPUs per Project Region
  • Get Serial Port Output Requests Nvidia L4 GPUs per Project Region
  • Nvidia L4 Vws GPUs per Project Region
  • Nvidia P100 GPUs per Project Region
  • Nvidia P100 Vws GPUs per Project Region
  • Nvidia P4 GPUs per Project Region
  • Nvidia P4 Vws GPUs per Project Region
  • Nvidia T4 GPUs per Project Region
  • Nvidia T4 Vws GPUs per Project Region
  • Nvidia V100 GPUs per Project Region
  • Pre-emptible Nvidia A100 80GB GPUs per Project Region
  • Pre-emptible Nvidia A100 GPUs per Project Region
  • Pre-emptible Nvidia H100 GPUs per Project Region
  • Pre-emptible Nvidia H100 Mega GPUs per Project Region
  • Pre-emptible Nvidia K80 GPUs per Project Region
  • Pre-emptible Nvidia L4 GPUs per Project Region
  • Pre-emptible Nvidia L4 Vws GPUs per Project Region
  • Pre-emptible Nvidia P100 GPUs per Project Region
  • Pre-emptible Nvidia P100 Vws GPUs per Project Region
  • Pre-emptible Nvidia P4 GPUs per Project Region
  • Pre-emptible Nvidia P4 Vws GPUs per Project Region
  • Pre-emptible Nvidia T4 GPUs per Project Region
  • Pre-emptible Nvidia T4 Vws GPUs per Project Region
  • Pre-emptible Nvidia V100 GPUs per Project Region
  • Reservations per Project Region
  • Commitments per Project Region
  • Committed Licenses per Project Region
  • Instance Group Managers per Project Region
  • Instance Groups per Project Region
  • Instance Templates per Project
  • Instance Templates per Project Region
  • Instances per VPC Network
  • Instances per Peering Group
  • Instances per Project Region
  • Instance List Referrers Requests per minute per Project
  • Instance List Referrers Requests per minute per Project per Region
  • common.inst.metadata.requests=
  • Regional Instance Group Managers per Project Region
  • Hdb Total Throughput per Project Zone
  • HDML Total Throughput per Project Region
  • Pd Extreme Total Provisioned IOPS per Project Region
  • Hdb Total IOPS per Project Zone
  • License Insert Requests per day per Project
  • License Insert Requests per minute per Project
  • License Verification Requests per Day per Project
  • License Verification Requests per Minute per Project
  • License Verification Requests per Minute per Project per Region
  • In Use Backup Schedules per Project Region
  • In Use Snapshot Schedules per Project Region
  • Snapshots per Project
  • Images per Project
  • Machine Images per Project
  • Node Groups per Project Region
  • Node Templates per Project Region
  • Get mac sec Config Requests per minute per Project
  • Global Concurrent Operations per Project
  • Global Concurrent Operations per Project Operation Type
  • Global Resource Write Requests per Minute per Project
  • Global Resource Write Requests per Minute per Project per Region
  • Heavy Weight Read Requests per minute per Project
  • Heavy Weight Read Requests per minute per Project per Region
  • Heavy Weight Write Requests per minute per Project
  • Heavy Weight Write Requests per minute per Project per Region
  • List Requests Filter Cost Overhead per Minute per Project
  • List Requests Filter Cost Overhead per Minute per Project per Region
  • List Requests per Minute per Project
  • List Requests per Minute per Project per Region
  • Operation Read Requests per Minute per Project
  • Operation Read Requests per Minute per Project per Region
  • Resource Policies per Project Region
  • Read Requests per Minute per Project
  • Read Requests per Minute per Project per Region
  • Concurrent Regional Operations per Project
  • Concurrent Regional Operations per Project per Operation Type
  • Simulate Maintenance Event Requests per Day per Project
  • Simulate Maintenance Event Requests per Minute per Project
  • Simulate Maintenance Event Requests per Minute per Project per Region
  • URL Maps per Project
  • XPN Service Projects per Project
  • Default Queries per Day per Project
  • Default Queries per Minute per Project
  • Default Queries per Minute per Project per Region

BigQuery

  • Alloy DB Federated Query Cross Region Bytes per Day
  • Cloud Sql Federated Query Cross Region Bytes per Day
  • Cross Cloud Transferred Bytes per Day
  • Extract Bytes per Day
  • IAM Policy Requests per Minute per Project
  • IAM Policy Requests per Minute per User
  • Tabledata List Bytes per Minute in Eu (default Quota)
  • Tabledata List Bytes per Minute per Region (default Quota)
  • Tabledata List Bytes per Minute in Us (default Quota)
  • Omni Materialized Query Bytes per Day
  • Query Usage per Day
  • Query Usage per User per Day
  • Set IAM Policy Requests per Minute per Project
  • Set IAM Policy Requests In Aws-ap-northeast-2 per Minute per Project
  • Set IAM Policy Requests In Aws-ap-southeast-2 per Minute per Project
  • Set IAM Policy Requests In Aws-eu-central-1 per Minute per Project
  • Set IAM Policy Requests In Aws-eu-west-1 per Minute per Project
  • Set IAM Policy Requests In Aws-us-east-1 per Minute per Project
  • Set IAM Policy Requests In Aws-us-west-2 per Minute per Project
  • Set IAM Policy Requests In Azure-eastus2 per Minute per Project
  • Set IAM Policy Requests In Azure-westus2 per Minute per Project
  • Global Set IAM Policy Requests per Minute per Project Global
  • Streaming Insert Bytes per Minute per Region (default Quota)
  • Streaming Insert Bytes per Minute In Eu (default Quota)
  • Streaming Insert Bytes per Minute In Us (default Quota)
  • Unlimited Requests per Day per Project

Cloud Network

  • Authz Extensions per Region
  • Edge Cache Key Sets
  • Edge Cache Origins
  • Edge Cache Services
  • Endpoint Policies
  • External Managed Project LB Observability Extensions per Region
  • Gateways
  • Global Authz Extensions
  • Global External Managed Project LB Observability Extensions
  • Global Internal Managed Project LB Observability Extensions
  • Global LB Observability Extensions
  • Global LB Route Extensions
  • Global LB Traffic Extensions
  • Global Project LB Observability Extensions per Load Balancing Scheme
  • GRPC HTTP Filters
  • HTTP Routes
  • Internal Managed Project LB Observability Extensions per Region
  • LB Observability Extensions per Region
  • LB Route Extensions per Region
  • LB Traffic Extensions per Region
  • Meshes
  • Message Publishing Routes
  • Message Subscriptions
  • Observability Policies
  • Plugins Via WASM Actions
  • Plugins Via WASM Actions per Day
  • Project LB Observability Extensions per Region per Load Balancing Scheme
  • Regional Endpoint Policies
  • Regional Gateways
  • Regional GRPC Routes
  • Regional HTTP Filters
  • Regional HTTP Routes
  • Regional Meshes
  • Regional Message Publishing Routes
  • Regional Message Subscriptions
  • Regional Service Bindings
  • Regional TCP Filters
  • Regional TCP Routes
  • Regional TLS Routes
  • Regional Traffic Policies
  • Requests per Minute
  • RO Requests per Minute
  • RW Requests per Minute
  • Service Bindings
  • Service LB Policies
  • TCP Filters
  • TCP Routes
  • TLS Routes
  • Traffic Policies
  • WASM Actions
  • WASM Plugin Versions
  • WASM Plugins
  • SSL Certificates per Project
  • SSL Policies per Project
  • SSL Policies per Project Region
  • Address Move per Minute per Project
  • Address Move Requests per Min per Project per Region
  • Global Internal Addresses per Project
  • In Use Addresses per Project
  • In Use Addresses per Project Region
  • Internal Addresses per Project Region
  • Static Addresses per Project
  • Static Addresses per Project Region
  • Static BYOIP Addresses per Project
  • Static BYOIP Addresses per Project Region
  • Static External IPv6 Address Ranges per Project Region
  • Static Internal IPv6 Address Ranges per Project Region
  • Variable IPv6 Public Delegated Prefixes per Project Region
  • Subnet Ranges per VPC Network
  • Subnet Ranges per Peering Group
  • Subnetworks per Project
  • Rule Attributes per Global Network Firewall Policy
  • Rule Attributes per Regional Network Firewall Policy
  • Network Firewall Policies per Project
  • Network Firewall Policies per Project Region
  • Firewalls per Project
  • FQDNs per Global Network Firewall Policy
  • FQDNs per Regional Network Firewall Policy
  • IP Aliases per VPC Network
  • IP Aliases per Peering Group
  • Network Attachments per Project Region
  • Network Endpoint Groups per Project
  • Network Endpoint Groups per Project Region
  • Networks per Project
  • Network Endpoint List Requests per Minute per Project
  • Network Endpoint List Requests per Minute per Project per Region
  • Network Endpoint Write Requests per Minute per Project
  • Network Endpoint Write Requests per Minute per Project per Region
  • Peerings per VPC Network
  • PSC Propagated Connections per VPC Network
  • Regional Network Endpoint List Requests per Minute per Project per Region
  • Regional Network Endpoint Write Requests per Minute per Project per Region
  • Static Routes per VPC Network
  • Static Routes per Peering Group
  • Security Policies per Project
  • Security Policies per Project Region
  • Security Policy Advanced Rules per Edge Security Policy
  • Security Policy Advanced Rules per Project Region
  • Security Policy Advanced Rules per Regional Security Policy
  • Security Policy Advanced Rules per Security Policy
  • Security Policy Ceval Rules per Project
  • Security Policy Rules per Project
  • Security Policy Rules per Project Region
  • Dynamic Routes per Region per Peering Group
  • Inter Region Egress Bandwidth per Project
  • Packet Mirrorings per Project
  • Public Advertised Prefixes per Project
  • Public Delegated Prefixes per Project
  • Public Delegated Prefixes per Project Region
  • Public Advertised Prefix V2 Announce Requests per Day per Project
  • Public Advertised Prefix V2 Announce Requests per Minute per Project
  • Public Advertised Prefix V2 Create Requests per Day per Project
  • Public Advertised Prefix V2 Create Requests per Minute per Project
  • Public Advertised Prefix V2 Delete Requests per Day per Project
  • Public Advertised Prefix V2 Delete Requests per Minute per Project
  • Public Delegated Prefix Announce Requests per Minute per Project per Region
  • Public Delegated Prefix Create Requests per Minute per Project per Region
  • Public Delegated Prefix Delete Requests per Minute per Project per Region
  • Public Delegated Prefix V2 Announce Requests per Day per Project
  • Public Delegated Prefix V2 Announce Requests per Minute per Project
  • Public Delegated Prefix V2 Create Requests per Day per Project
  • Public Delegated Prefix V2 Create Requests per Minute per Project
  • Public Delegated Prefix V2 Delete Requests per Day per Project
  • Public Delegated Prefix V2 Delete Requests per Minute per Project
  • Routes per Project
  • Service Attachments per Project Region
  • VM To Internet Egress Bandwidth per Project Region
  • Authz Extensions per Region
  • Edge Cache Key Sets
  • Edge Cache Origins
  • Edge Cache Services
  • Endpoint Policies
  • External Managed Project LB Observability Extensions per Region
  • Gateways
  • Global Authz Extensions
  • Global External Managed Project LB Observability Extensions
  • Global Internal Managed Project LB Observability Extensions
  • Global LB Observability Extensions
  • Global LB Route Extensions
  • Global LB Traffic Extensions
  • Global Project LB Observability Extensions per Load Balancing Scheme
  • GRPC Routes
  • HTTP Filters
  • HTTP Routes
  • Internal Managed Project LB Observability Extensions per Region
  • LB Observability Extensions per Region
  • LB Route Extensions per Region
  • LB Traffic Extensions per Region
  • Meshes
  • Message Publishing Routes
  • Message Subscriptions
  • Observability Policies
  • Plugins Via WASM Actions
  • Plugins Via WASM Actions per Day
  • Project LB Observability Extensions per Region per Load Balancing Scheme
  • Regional Endpoint Policies
  • Regional Gateways
  • Regional GRPC Routes
  • Regional HTTP Filters
  • Regional HTTP Routes
  • Regional Meshes
  • Regional Message Publishing Routes
  • Regional Message Subscriptions
  • Regional Service Bindings
  • Regional TCP Filters
  • Regional TCP Routes
  • Regional TLS Routes
  • Regional Traffic Policies
  • Requests per Minute
  • RO Requests per Minute
  • RW Requests per Minute
  • Service Bindings
  • Service LB Policies
  • TCP Filters
  • TCP Routes
  • TLS Routes
  • Traffic Policies
  • WASM Actions
  • WASM Plugin Versions
  • WASM Plugins

Cloud VPC Access

  • Read Requests per Minute per Project
  • Write Requests per Minute per Project

Cloud Router

  • Cloud Router Prefixes from other Regions per Region per VPC
  • Cloud Router Prefixes from Own Region per Region per VPC
  • Routers per Project
  • External VPN Gateways per Project
  • Target VPN Gateways per Project
  • VPN Gateways per Project
  • VPN Tunnels per Project

Load Balancer

  • External Network LB Forwarding Rules per Project Region
  • Global External Proxy LB Backend Services per Project
  • Internal LB Forwarding Rules per VPC Network
  • Internal LB Forwarding Rules per Peering Group
  • Net LB Security Policies per Project Region
  • Net LB Security Policy Rule Attributes per Project Region
  • Net LB Security Policy Rules per Project Region
  • PSC LLB Consumer Forwarding Rules per Producer VPC Network
  • PSC Internal Lb Forwarding Rules per Project Region
  • Regional External Network Lb Backend Services per Project Region
  • Regional Internal Lb Backend Services per Project Region
  • Target HTTP Proxies per Project
  • Target HTTPS Proxies per Project
  • Target Instances per Project
  • Target Pools per Project
  • Target SSL Proxies per Project
  • Target TCP Proxies per Project
  • Target TCP Proxies per Project Region
  • External Managed Forwarding Rules per Project Region
  • External Protocol Forwarding Rules per Project Region
  • Forwarding Rules per Project
  • Global External Managed Forwarding Rules per Project
  • Global Internal Managed Forwarding Rules per Region per VPC
  • Internal Managed Forwarding Rules per VPC Network
  • Internal Managed Forwarding Rules per Peering Group
  • Internal Protocol Forwarding Rules per VPC Network
  • Internal Protocol Forwarding Rules per Peering Group
  • Internal Traffic Director Forwarding Rules per Project
  • PSC Google APIs Forwarding Rules per VPC Network
  • Regional External Managed Forwarding Rules per Region per VPC
  • Regional Internal Managed Forwarding Rules per Region per VPC
  • Backend Buckets per Project
  • Backend Services per Project
  • Global External Managed Backend Services per Project
  • Global Internal Managed Backend Buckets per Project
  • Global Internal Managed Backend Services per Project
  • Global Internal Traffic Director Backend Services per Project
  • Regional External Managed Backend Services per Project Region
  • Regional Internal Managed Backend Services per Project Region
  • Regional Internal Traffic Director Backend Services per Project
  • Health Checks per Project

本文档对您有帮助吗？

您愿意帮助我们改进文档吗？请告诉我们哪些方面可以做得更好。


很抱歉本文档未能让您满意。我们希望了解可以从哪些方面改进您的体验。


感谢您抽出时间分享反馈。我们将利用您的反馈来改进在线帮助资源。

短链接已复制！
